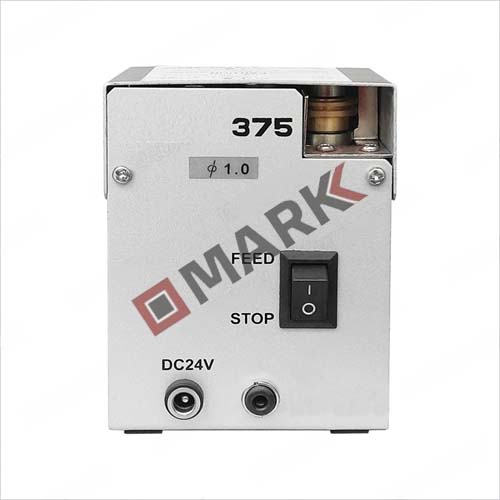

375 Solder Feeding Machine


375 Solder Feeding Machine

 P/N: W00224 )

● Model:  375
● MOQ:  1 set
● Packing details:  20cm*18cm*18cm/set 0.84kg/set

1,Effectively cut open the tin wire
2,Eliminate splash engendered by the high temperature weldings,Improve the quality of welding quality.
Test conditions:
1,Set the tempeture at 350°C and 400°C, add 1.0 * 500 mm of lead-free solder (Sn-3Ag-0.5Cu) to the welding tip, and then measure the weight of flying flux.
2,According to different test condition, the additive flux will be different from flying weight



Model 375
Imput voltage 110v/220v
mainframe power DC24V 75mA
Outline Dimension 76W*96H*50(D)mm
N.W About 590g
Speed 30mm/s
Tin wire Diameter 0.5/0.6/0.8/1.0/1.2/1.5/1.6mm
