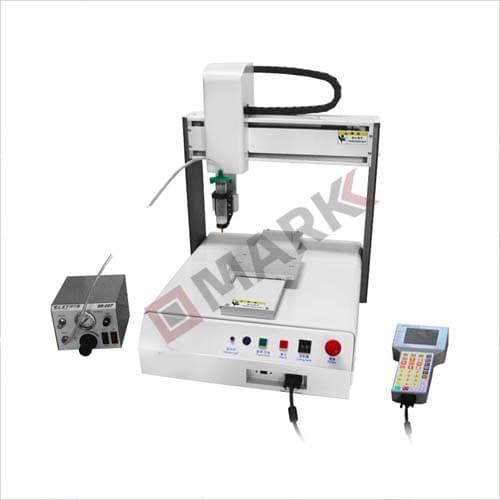

Glue Dispensing Robot
Our glue dispensing robot has high performance and cost-effective platform, the working process is flexible and fast. The dispensing velocity, time, angles and dispensing volume, etc can be control as desired. It is suitable for various glue dispensing control, replace the manual dispensing operation, to realize the automatic dispensing, it improves the production efficiency, stable quality, and keep the dispensing process consistency. It can repid recovery cost.
|Voltage||110V / 220V AC|
|Drive Mode||4-Axis precision step motor|
|Operating Range (X * Y * Z)||300 x 300 x 80mm|
|Movement Speed||X * Y * R Axis: 0.1~800mm/sec, Z Axis :0.1~400mm/sec|
|Repeatability Accuracy||±0.002mm (X * Y * Z)|
|Minimum Analysis||0.01mm (X * Y * Z)|
|Maximum Load Weight||8kgs (for work platform)|
|Program Capacity||Max 255 Programs|
|External Dimensions||650mm x 630mm x 680mm|
1.Replace the human labor and save labor cost.
2.Simple and convenient operation, high speed and precise control.
3.Realize the precise dispensing by the high-precision motor.
4.High performance Linear structure platform with nice appearance.
