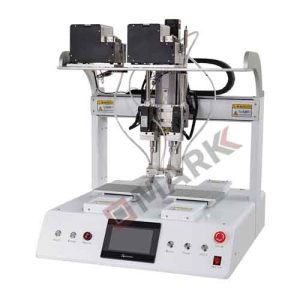

Starobot Soldering Robot:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Specifications:
| Model | S513 |
| Voltage | 110V / 220V |
| Heating Power | 150W |
| Preheating Temperature Range | 0℃~500℃ |
| Axis | 4 |
| Operating Range (X * Y * Z) | 400 x 400 x 100mm |
| Movement Speed | X * Y Axis: 0.1~600mm/sec, Z Axis :0.1~400mm/sec |
| Repeat Positioning Accuracy | ±0.002mm |
| Resolution | 0.01mm |
| Maximum Load Weight | 8kg (for work platform) |
| Solder Wire Diameter | 0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Demo File Capacity | ≤999files, max 1994 points for each file |
| Program Capacity | max 255 programs |
| Operate Temperature | 0℃~40℃ |
| Operate Humidity | 20~90% |
| External Dimensions | 720mm x 700mm x 810mm |
| Weight | about 66kgs |
