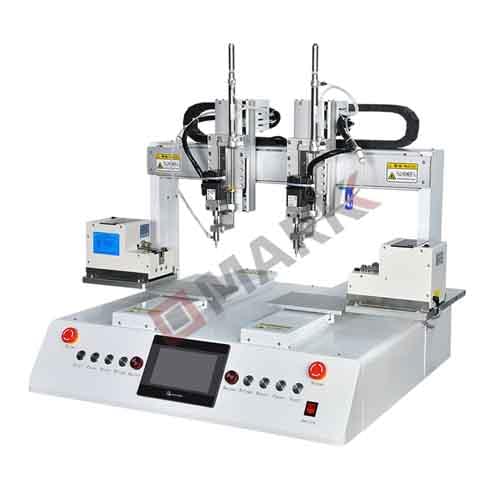

WT-4220-2Z (Vacuum Suction Type)
Screw Fastening Robot
Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistency & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
|Operating Range (X * Y * Y * Z)||X200 * Y1/420 * Z135mm / X200 *Y2/420 * Z135mm|
|Movement Speed||X/Y Axis: ≤500mm/s, Z Axis: ≤300mm/s|
|Screwing time for each screw||1.0~1.5s /piece|
|Suitable screw size||M1.0 – M4 (total screw length ≤ 16mm)|
|Control system||SCM + Touch Screen|
|Program capacity||15 files, each file can save up to 99 points|
|Air source||0.4 -0.6 Mpa|
|Dimensions (WxDxH)||970 x 820 x 900mm|
|Weight||about 100 kgs|
- Double Y Axis can use two different screws (or the same screws), so as to achieve highly efficient work mode.
- Vacuum suction type, to achieve fast feeding and screwing.
- The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
- Support auto sensing start operation function.
- Servo Motor or Electric Screwdriver are optional. Both of them can adjust the torque and rotation speed freely.
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
