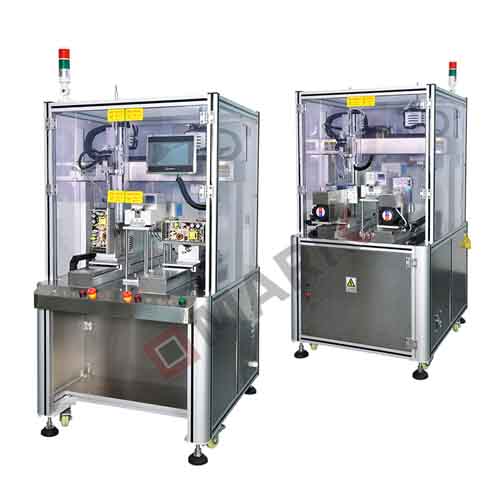

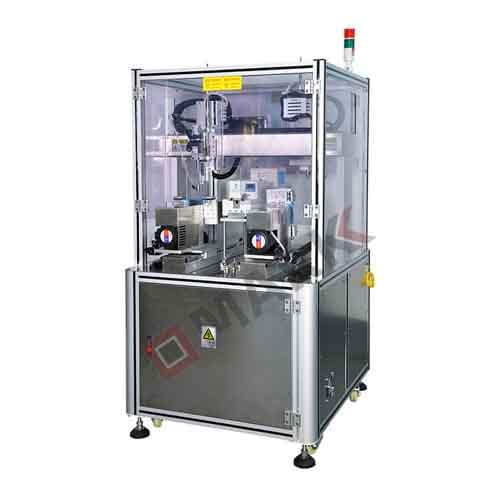

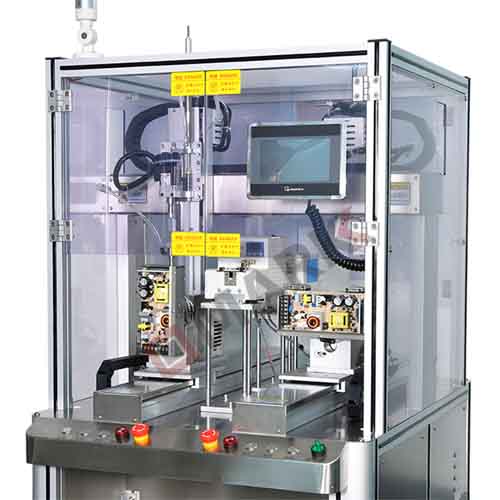

WT-7024-2Z (BACK-TO-BACK (Vacuum Suction)
Screw Fastening Robot
Screw Fastening Robot greatly improves the work efficiency and the screw fastening consistency & reliability. With the advanced Teaching Pendant, operators can set up by themselves all the process parameters such as the screw coordinate and screw types, etc. It can adapt to all sorts of difficult screw fastening process and achieve the complete automation.
Specifications:
| Model | WT-7024-2Z |
| Operating Range (X * Y * Z) | X240 * Y1/700 * Z135mm / X240 * Y2/700 * Z135mm（Double Z Axis） |
| Movement Speed | X/Y Axis: ≤500mm/s， Z Axis: ≤300mm/s. |
| Repeatability Accuracy | ±0.03mm |
| Screwing time for each screw | 1.0~1.5s/piece |
| Suitable screw size | M1.5 – M4 (total screw length ≤ 20mm) |
| Control system | SCM + Touch Screen |
| Program capacity | 15 files, each file can save up to 99 points |
| Air source | 0.4 -0.6 Mpa |
| Dimensions(WxDxH) | 1090 x 810 x 1750mm |
| Weight | 120 kgs |
Features:
- Back-to-Back type can tighten two different screws on the same product on the same Y axis, so as to achieve extremely fast and efficient work mode.
- With the work cabinet, the screwing performance is very stable and the working position can be moved flexibly.
- The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
- With alarm function for fastening missing, untightened screws, worn thread, etc.
- Servo Motor or Electric Screwdriver are optional. Both of them can adjust the torque and rotation speed freel.
Applications:
It is suitable for all kinds of screw fastening process on mobile phones, keyboards, monitors, car accessories, toys, small home electrical appliances, integrated circuits, printed circuit boards, LCD screen, electronic components (such as relays, speakers), etc.
