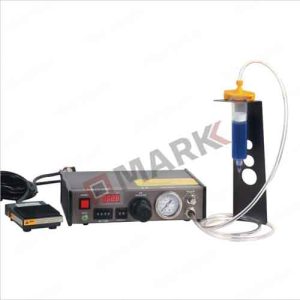

Automatic Glue Dispenser Machine Professional Precise Dispensing Controller
Automatic Screwing & Soldering Robotic System.
Soldering Robot (with display) JBI-SR1722
Starobot Soldering Robot:
Soldering Robot provides the best solution for soldering job on lead-free, heat dissipating PCB, and high thermal capacity components. It is suitable for all sorts of difficult soldering tasks and micro soldering process. It effectively improves the soldering quality and consistency. Besides, it saves 30% of the solder consumption comparing to manual soldering.
Specifications:
| Model | JBI-SR1722 |
| Solder Joint Range | X500* Y1/300*Y2/300*Z100mm（XxYxYxZ） |
| Solder Time | 1.0~1.5s/point |
| Repeat Positioning Accuracy | ±0.002mm |
| Solder Wire Diameter | 0.5, 0.6, 0.8, 1.0, 1.2 (mm) |
| Air source | 0.4-0.6 MPA |
| Axis | 5 |
| Program Capacity | 999 files, each file can save up to 999 points |
| External Dimensions(WxDxH) | 820mm x 600mm x 800mm |
| Weight | about 65kgs |
